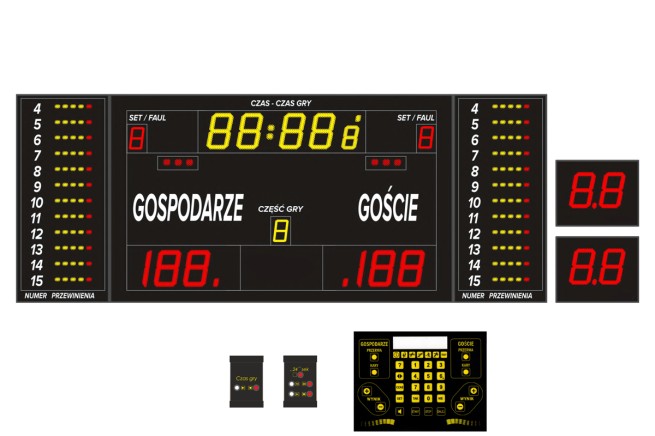

DTS 180 PRO SCOREBOARD

The scoreboard is designed primarily for sports halls. The DTS-180 PRO is characterised by its high durability and excellent, modern design. The scoreboard can be used in a variety of sports (basketball, volleyball, handball, futsal, floorball). Ideally suited for professional team games. Thanks to a multitude of different features, the results and situation of the match are presented in a clear way for spectators and team members. The scoreboard will certainly enhance the prestige of any competition. It is professional, robust and easy to use. In addition, it is equipped with 24/14 second clocks on separate boards. It is possible to upgrade countdown timers to include a shot clock. In addition, it is possible to programme team names and player numbers (from 0 to 99) as well as displaying their individual scores and time-outs.

SCOREBOARD DIMENSIONS: 3150x1250x65 mm.

DIMENSIONS OF 24/14 SECOND BOARDS: 500x400x65 mm.

DISPLAYED PARAMETERS:

- playing time to the nearest 0.1 sec.

- actual time,

- stop time indicator,

- serve indicator,

- game score (0 to 199),

- game part number (from 0 to 9),

- team fouls,

- individual fouls,

- time-outs,

- score in set,

- end of action time - 24/14 seconds countdown on separate boards.

AUDIO SIGNAL: yes

SCOREBOARD VISIBILITY: up to 80 m.

BODY: PVC body, anti-reflective polycarbonate faceplate, ball-proof

HEIGHT OF LED MODULES: 220 mm, 130 mm.

LEDs: super-bright

BEAM ANGLE: 120 degrees

NUMBER OF LED COLOURS: 2 (red and yellow)

POWER SUPPLY: 230V / 50 Hz

CONTROL: wireless or wired – control panel with integrated battery and LCD display
